README.md
Former

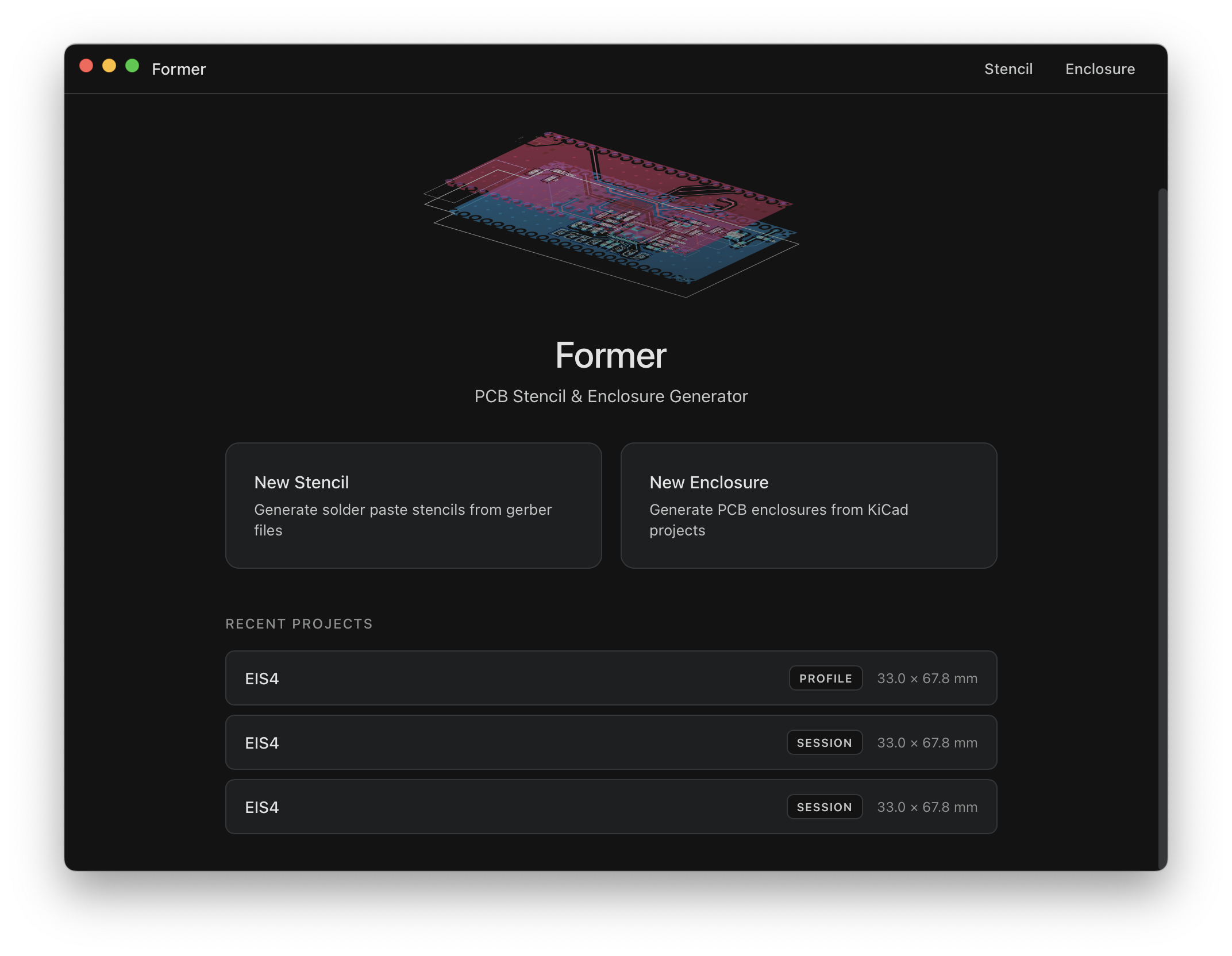

A desktop application for generating 3D-printable solder paste stencils and snap-fit enclosures from KiCad/Gerber files.
Features
Stencil Generation
- Parses RS-274X Gerber solder paste layers
- Supports standard apertures (Circle, Rectangle, Obround) and Aperture Macros with rotation
- Generates optimized STL meshes for 3D printing
- Automatic cropping to PCB bounds
Enclosure Generation
- Generates snap-fit enclosures with lids and trays from KiCad
.gbrjobprojects - Native OpenSCAD
.scadexport for parametric editing - Interactive 3D layer viewer with per-layer colorization (KiCad color scheme)
- Visual cutout placement on any surface (top, bottom, sides) with live 3D preview
- Automatic USB port detection and cutout alignment from F.Fab/B.Fab layers
- Tray clip system with vertical relief slots
- Dado/engrave mode for surface text and logos
Desktop App
- Native macOS and Windows application (Wails v2)
- Project saving and loading with persistent cutout state
- CLI mode for scripted/batch workflows
Install
Requirements
- Go 1.21+
- Wails CLI:
go install github.com/wailsapp/wails/v2/cmd/wails@latest - Node.js 18+ (for frontend build)
- macOS: Xcode Command Line Tools (
xcode-select --install)
Build
macOS:
./build.sh
Windows (native):
build-windows.bat
Cross-compile for Windows (from macOS/Linux):
./build-windows.sh
The built application will be at build/bin/Former.app (macOS) or build/bin/Former.exe (Windows).
CLI Usage
Former can also run headless from the command line:
./Former [options] <paste_layer.gbr> [outline.gbr]
Options
| Flag | Default | Description |
|---|---|---|
--height |
0.16 | Stencil height in mm |
--wall-height |
2.0 | Wall height in mm |
--wall-thickness |
1.0 | Wall thickness in mm |
--dpi |
1016 | Rendering DPI |
--keep-png |
false | Save intermediate PNG |
Example
./Former --height=0.16 --keep-png my_board-F_Paste.gbr my_board-Edge_Cuts.gbr
3D Printing Tips
For fine-pitch SMD stencils (TSSOP, 0402, etc.):
- Nozzle: 0.2mm recommended
- Layer height: 0.16mm total (0.10mm first layer + 0.06mm second)
- Build surface: Smooth PEI sheet for flat stencil bottom
Acknowledgments
Former began as a fork of pcb-to-stencil by Nikolai Danylchyk, a Go tool for converting Gerber paste layers to STL stencils. The original Gerber parser and STL mesh generation formed the foundation that Former builds upon.
License
MIT License — see LICENSE for details.
